Plan Deductible Rules API | Administrative - SOAP

The PlanDeductibleRule service allows clients the ability to read, add, update, and delete the deductible rules on a plan.

Service web methods

The following operations are supported:

DeleteDeductibleRules - This method is used to delete a set of deductible rules on a plan.
GetBenefitPlanDeductibleRules - This method is used to retrieve a set of deductible rules on a plan.
SaveDeductibleRules - This method is used to insert or update a set of deductible rules on a plan.

Service assumptions/business rules

The PlanDeductibleRule service makes the following assumptions and enforces the following business rules:

Clients shall conform to the WS-I specifications unless otherwise agreed upon by Alegeus and the administrator.
Clients shall format SOAP messages in a document/literal format over HTTPS.
Clients shall have already created a valid user ID and password.
Clients shall have a valid session ID after being authenticated by the system. The session ID needs to be passed in the proper manner as described in the account manager service guide.
If the administrator uses the same user ID and password for all of their clients, the administrator is responsible for managing the security of the data.
Clients should validate data before submitting a request to this service. This facilitates better performance and accurate processing on both systems.
Clients shall not attempt to use this service for batch processing of large amounts of data. The service is designed for synchronous calls that send or retrieve small chunks of data. If batch processing is required, then the EDI process should be used.
If any method fails, the service returns a SOAP fault describing the problem.

DeleteDeductibleRules

This method is used to delete a set of deductible rules on a plan.

History

The DeleteDeductibleRules methods are listed below:

Request messages

DeleteDeductibleRule

Response messages

DeleteDeductibleRuleResponse

DeleteDeductibleRules request/response messages

The DeleteDeductibleRules method requires the following request and response messages (input and output data).

The table below includes the following request messages:

DeleteDeductibleRuleRequest

Request Body

TpaId String required

Unique identifier WCA assigns to you.

First Available Version: DeleteDeductibleRuleRequest
EmployerId string required

The unique identifier of the employer.

First Available Version: DeleteDeductibleRuleRequest
AccountTypeCode string required

The account type code associated with the plan.

First Available Version: DeleteDeductibleRuleRequest
PlanId string required

The unique identifier of the plan.

First Available Version: DeleteDeductibleRuleRequest
PlanYearStartDate date required

The date the plan starts.
Format = YYYY-MM-DD

First Available Version: DeleteDeductibleRuleRequest
PlanYearEndDate Date required

The date the plan ends.
Format = YYYY-MM-DD

First Available Version: DeleteDeductibleRuleRequest
CoverageTierId String required

This field is only applicable for plans enabled with a Coverage Tier Type. Populate with the specific Tier ID to which the deductible rules should be associated. If coverage tiers are enabled for the Plan, and this field is left blank, then the record will fail.

First Available Version: DeleteDeductibleRuleRequest

Response message: Empty response. Example of DeleteDeductibleRules SOAP request message

<?xml version="1.0" encoding="utf-8"?>
<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
    <soap:Header>
        <MBISessionHeader xmlns="http://www.medibank.com/MBIWebServices/SoapHeader/">
            <MBISessionID>string</MBISessionID>
        </MBISessionHeader>
    </soap:Header>
    <soap:Body>
        <DeleteDeductibleRuleRequest
            xmlns="http://www.medibank.com/MBIWebServices/Plan/Messages/DeductibleRule/Request/2008/07/">
            <request>
                <TpaId>string</TpaId>
                <EmployerId>string</EmployerId>
                <AccountTypeCode>string</AccountTypeCode>
                <PlanId>string</PlanId>
                <PlanYearStartDate>date</PlanYearStartDate>
                <PlanYearEndDate>date</PlanYearEndDate>
                <CoverageTierId>string</CoverageTierId>
            </request>
        </DeleteDeductibleRuleRequest>
    </soap:Body>
</soap:Envelope>

Example of DeleteDeductibleRules SOAP response message

<?xml version="1.0" encoding="utf-8"?>
<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
    <soap:Header>
        <MBIMessageIdHeader xmlns="http://www.medibank.com/MBIWebServices/SoapHeader/">
            <MessageId>string</MessageId>
        </MBIMessageIdHeader>
    </soap:Header>
    <soap:Body>
        <DeleteDeductibleRuleResponse
            xmlns="http://www.medibank.com/MBIWebServices/Plan/Messages/DeductibleRule/Response/2008/07/">
            <DeleteDeductibleRulesResult />
        </DeleteDeductibleRuleResponse>
    </soap:Body>
</soap:Envelope>

Example client code

The following is an example of the client code (using a .NET proxy class for accessing the service) used when calling the DeleteDeductibleRules web method.

try
{
    // create new SOAP header for the user’s current session id localhost.MBISessionHeader sh = new localhost.MBISessionHeader();
    // create the proxy object for the service  localhost.PlanDeductibleRuleService proxy = new localhost.PlanDeductibleRuleService();
    // create a new request object for the method’s parameters
    localhost.DeleteDeductibleRules request = new localhost.DeleteDeductibleRules();
    // set the parameters for the web method call
    request.TpaId = "T00021";
    request.EmployerId = "MedSC";
    request.AccountTypeCode = “FSA”;
    request.PlanId = “FSA2009”;
    request.PlanYearStartDate = 2009-01-01;
    request.PlanYearEndDate = 2009-12-31;
    request.CoverageTierId = “CVRTIER1”;
    // Add the session SOAP header so that the service knows who we are.
    // Note that we stored the session ID in a member variable after
    // logged in to the system for future web method calls.
    sh.MBISessionID = _sessionID;
    proxy.MBISessionHeaderValue = sh;
    // Call the web method.
    proxy.DeleteDeductibleRules(request);
    MessageBox.Show("Finished");
}
catch(SoapException se)
{
    // perform needed operations
}
catch(Exception ex)
{
    // perform needed operations
}

GetBenefitPlanDeductibleRules

This method is used to retrieve existing deductible rules on an existing plan.

History

The GetBenefitPlanDeductibleRules methods are listed below:

Request messages

GetBenefitPlanDeductibleRuleRequest

Response messages

GetBenefitPlanDeductibleRuleResponse

GetBenefitPlanDeductibleRules request/response messages

The GetBenefitPlanDeductibleRules method requires the following request and response messages (input and output data).

The table below includes the following request messages:

GetBenefitPlanDeductibleRuleRequest

Request Body

TpaId string required

Unique identifier WCA assigns to you.

First Available Version: GetBenefitPlanDeductibleRuleRequest
EmployerId string required

The unique identifier of the employer.

First Available Version: GetBenefitPlanDeductibleRuleRequest
AccountTypeCode string required

The account type code associated with the plan.

First Available Version: GetBenefitPlanDeductibleRuleRequest
PlanId string required

The unique identifier of the plan.

First Available Version: GetBenefitPlanDeductibleRuleRequest
PlanYearStartDate date required

The date the plan starts.
Format = YYYY-MM-DD

First Available Version: GetBenefitPlanDeductibleRuleRequest
PlanYearEndDate date required

The date the plan ends.
Format = YYYY-MM-DD

First Available Version: GetBenefitPlanDeductibleRuleRequest
CoverageTierId string required

This field is only applicable for plans enabled with a Coverage Tier Type. Populate with the specific Tier ID to which the deductible rules should be associated. If coverage tiers are enabled for the Plan, and this field is left blank, then the record will fail.

First Available Version: GetBenefitPlanDeductibleRuleRequest

The table below includes the following response messages:

GetBenefitPlanDeductibleRuleResponse

Response Body

TpaId string

Unique identifier WCA assigns to you.

First Available Version: GetBenefitPlanDeductibleRuleResponse
EmployerId string

The unique identifier of the employer.

First Available Version: GetBenefitPlanDeductibleRuleResponse
AccountTypeCode string

The account type code associated with the plan.

First Available Version: GetBenefitPlanDeductibleRuleResponse
PlanId string

The unique identifier of the plan.

First Available Version: GetBenefitPlanDeductibleRuleResponse
PlanYearStartDate date

The date the plan starts.
Format = YYYY-MM-DD

First Available Version: GetBenefitPlanDeductibleRuleResponse
PlanYearEndDate date

The date the plan ends.
Format = YYYY-MM-DD

First Available Version: GetBenefitPlanDeductibleRuleResponse
CoverageTierId string

This field is only applicable for plans enabled with a Coverage Tier Type.
Populate with the specific Tier ID to which the deductible rules should be associated. If coverage tiers are enabled for the Plan, and this field is left blank, then the record will fail.

First Available Version: GetBenefitPlanDeductibleRuleResponse
PlanKey int

The plan key.

First Available Version: GetBenefitPlanDeductibleRuleResponse
CoverageTierKey int

Coverage tier key.

First Available Version: GetBenefitPlanDeductibleRuleResponse
DeductibleRuleSetKey int

The deductible rule set key.

First Available Version: GetBenefitPlanDeductibleRuleResponse
DeductibleRuleSet Array

If there are rule sets, this array will return the fields listed below.

First Available Version: GetBenefitPlanDeductibleRuleResponse
DeductibleRuleKey int

The deductible rule key.

First Available Version: GetBenefitPlanDeductibleRuleResponse
LowRange decimal

The low range.

First Available Version: GetBenefitPlanDeductibleRuleResponse
HighRange decimal

The high range.

First Available Version: GetBenefitPlanDeductibleRuleResponse
PlanPayPercentage short

The plan pay percentage.

First Available Version: GetBenefitPlanDeductibleRuleResponse
DeductiblePercentage short

The deductible percentage.

First Available Version: GetBenefitPlanDeductibleRuleResponse

Example of GetBenefitPlanDeductibleRules SOAP request message

<?xml version="1.0" encoding="utf-8"?>
<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema"
    xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
    <soap:Header>
        <MBISessionHeader xmlns="http://www.medibank.com/MBIWebServices/SoapHeader/">
            <MBISessionID>string</MBISessionID>
        </MBISessionHeader>
    </soap:Header>
    <soap:Body>
        <GetBenefitPlanDeductibleRuleRequest
            xmlns="http://www.medibank.com/MBIWebServices/Plan/Messages/DeductibleRule/Request/2008/07/">
            <request>
                <TpaId>string</TpaId>
                <EmployerId>string</EmployerId>
                <AccountTypeCode>string</AccountTypeCode>
                <PlanId>string</PlanId>
                <PlanYearStartDate>date</PlanYearStartDate>
                <PlanYearEndDate>date</PlanYearEndDate>
                <CoverageTierId>string</CoverageTierId>
            </request>
        </GetBenefitPlanDeductibleRuleRequest>
    </soap:Body>
</soap:Envelope>

Example of GetBenefitPlanDeductibleRules SOAP response message:

<?xml version="1.0" encoding="utf-8"?>
<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
    <soap:Header>
        <MBIMessageIdHeader xmlns="http://www.medibank.com/MBIWebServices/SoapHeader/">
            <MessageId>string</MessageId>
        </MBIMessageIdHeader>
    </soap:Header>
    <soap:Body>
        <GetBenefitPlanDeductibleResponse
            xmlns="http://www.medibank.com/MBIWebServices/Plan/Messages/DeductibleRule/Response/2008/07/">
            <GetBenefitPlanDeductibleRulesResult>
                <TpaId>string</TpaId>
                <EmployerId>string</EmployerId>
                <AccountTypeCode>string</AccountTypeCode>
                <PlanId>string</PlanId>
                <PlanYearStartDate>date</PlanYearStartDate>
                <PlanYearEndDate>date</PlanYearEndDate>
                <CoverageTierId>string</CoverageTierId>
                <PlanKey>int</PlanKey>
                <CoverageTierKey>int</CoverageTierKey>
                <DeductibleRuleSetKey>int</DeductibleRuleSetKey>
                <DeductibleRuleSet>
                    <DeductibleRuleKey>int</DeductibleRuleKey>
                    <LowRange>decimal</LowRange>
                    <HighRange>decimal</HighRange>
                    <PlanPayPercentage>short</PlanPayPercentage>
                    <DeductiblePercentage>short</DeductiblePercentage>
                </DeductibleRuleSet>
                <DeductibleRuleSet>
                    <DeductibleRuleKey>int</DeductibleRuleKey>
                    <LowRange>decimal</LowRange>
                    <HighRange>decimal</HighRange>
                    <PlanPayPercentage>short</PlanPayPercentage>
                    <DeductiblePercentage>short</DeductiblePercentage>
                </DeductibleRuleSet>
            </GetBenefitPlanDeductibleRulesResult>
        </GetBenefitPlanDeductibleResponse>
    </soap:Body>
</soap:Envelope>

Example client code

The following is an example of the client code (using a .NET proxy class for accessing the service) used when calling the GetBenefitPlanDeductibleRules web method.

try
{
    // create new SOAP header for the user’s current session id localhost.MBISessionHeader sh = new localhost.MBISessionHeader();
    // create the proxy object for the service
    localhost.PlanDeductibleRuleService proxy = new localhost.PlanDeductibleRuleService();
    // create a new request object for the method’s parameters
    localhost.GetBenefitPlanDeductibleRules request = new localhost.GetBenefitPlanDeductibleRules();  localhost.GetBenefitPlanDeductibleRulesResponse resp;
    // set the parameters for the web method call
    request.TpaId = "T00021";
    request.EmployerId = "MedSC";
    request.AccountTypeCode = “FSA”;
    request.PlanId = “FSA2009”;
    request.PlanYearStartDate = 2009-01-01;
    request.PlanYearEndDate = 2009-12-31;
    request.CoverageTierId = “CVRTIER1”;
    // Add the session SOAP header so that the service knows who we are. // Note that we stored the session ID in a member variable after
    // logged in to the system for future web method calls.
    sh.MBISessionID = _sessionID;
    proxy.MBISessionHeaderValue = sh;
    // Call the web method.
    resp = proxy.DeleteDeductibleRules(request);
    MessageBox.Show("Finished");
}
catch(SoapException se)
{
    // perform needed operations
}
catch(Exception ex)
{
    // perform needed operations
}

SaveDeductibleRules

This method is used to insert or update plan deductible rules on an existing plan.

History

The SaveDeductibleRules methods are listed below:

Request messages

SaveDeductibleRuleRequest

Response messages

SaveDeductibleRuleResponse

SaveDeductibleRules request/response messages

The SaveDeductibleRules method requires the following request and response messages (input and output data).

The table below includes the following request messages:

SaveDeductibleRuleRequest

Request Body

TpaId string required

Unique identifier WCA assigns to you.

First Available Version: SaveDeductibleRuleRequest
EmployerId string required

The unique identifier of the employer.

First Available Version: SaveDeductibleRuleRequest
AccountTypeCode string required

The account type code associated with the plan.

First Available Version: SaveDeductibleRuleRequest
PlanId string required

The unique identifier of the plan.

First Available Version: SaveDeductibleRuleRequest
PlanYearStartDat e date required

The date the plan starts.
Format = YYYY-MM-DD

First Available Version: SaveDeductibleRuleRequest
PlanYearEndDate date required

The date the plan ends.
Format = YYYY-MM-DD

First Available Version: SaveDeductibleRuleRequest
CoverageTierId string required

This field is only applicable for plans enabled with a Coverage Tier Type. Populate with the specific Tier ID to which the deductible rules should be associated. If coverage tiers are enabled for the Plan, and this field is left blank, then the record will fail.

First Available Version: SaveDeductibleRuleRequest
DeductibleRuleSet array required

An array containing the deductible rules.
Please see appropriate table for DeductibleRuleSet definition

First Available Version: SaveDeductibleRuleRequest
HighRange decimal required

The high range.

First Available Version: SaveDeductibleRuleRequest
PlanPayPercentag e short required

The plans pay percentage.

First Available Version: SaveDeductibleRuleRequest

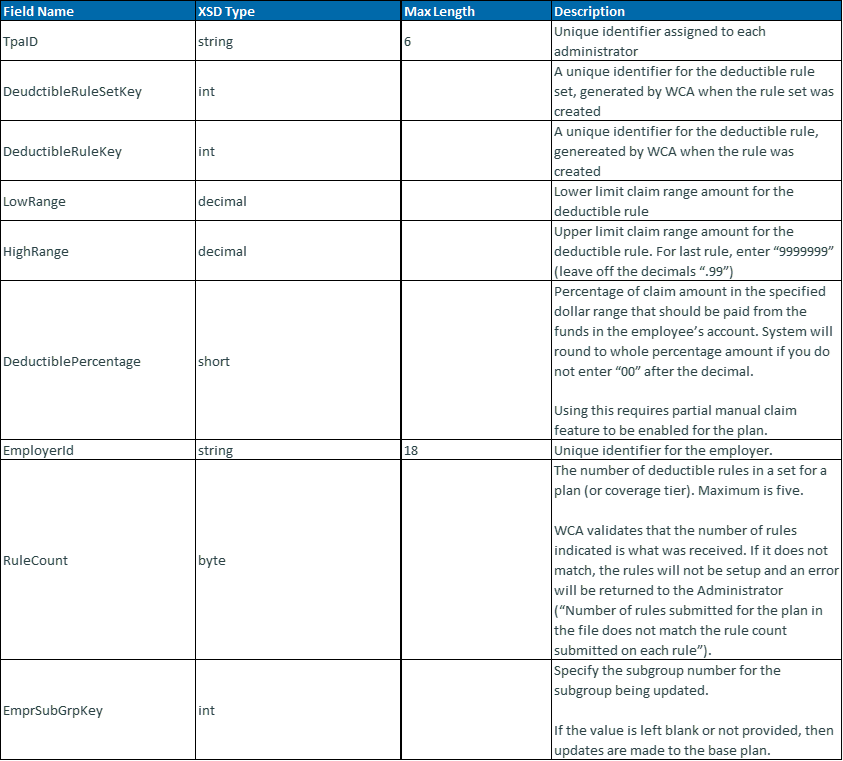

The table below includes detail for the DeductibleRuleSet object:

Response message: Empty message.

Example of SaveDeductibleRules SOAP request message:

<?xml version="1.0" encoding="utf-8"?>
<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
    <soap:Header>
        <MBISessionHeader xmlns="http://www.medibank.com/MBIWebServices/SoapHeader/">
            <MBISessionID>string</MBISessionID>
        </MBISessionHeader>
    </soap:Header>
    <soap:Body>
        <SaveDeductibleRuleRequest
            xmlns="http://www.medibank.com/MBIWebServices/Plan/Messages/DeductibleRule/Request/2008/07/">
            <request>
                <TpaId>string</TpaId>
                <EmployerId>string</EmployerId>
                <AccountTypeCode>string</AccountTypeCode>
                <PlanId>string</PlanId>
                <PlanYearStartDate>date</PlanYearStartDate>
                <PlanYearEndDate>date</PlanYearEndDate>
                <CoverageTierId>string</CoverageTierId>
                <DeductibleRuleSet>
                    <HighRange>decimal</HighRange>
                    <PlanPayPercentage>short</PlanPayPercentage>
                </DeductibleRuleSet>
                <DeductibleRuleSet>
                    <HighRange>decimal</HighRange>
                    <PlanPayPercentage>short</PlanPayPercentage>
                </DeductibleRuleSet>
            </request>
        </SaveDeductibleRuleRequest>
    </soap:Body>
</soap:Envelope>

Example of SaveDeductibleRules SOAP response message

<?xml version="1.0" encoding="utf-8"?>
<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema"
    xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">
    <soap:Header>
        <MBIMessageIdHeader xmlns="http://www.medibank.com/MBIWebServices/SoapHeader/">
            <MessageId>string</MessageId>
        </MBIMessageIdHeader>   </soap:Header>   <soap:Body>
        <SaveDeductibleRuleResponse
            xmlns="http://www.medibank.com/MBIWebServices/Plan/Messages/DeductibleRule/Response/2008/07/">
            <SaveDeductibleRulesResult />
        </SaveDeductibleRuleResponse>
    </soap:Body>
</soap:Envelope>

Example client code

The following is an example of the client code (using a .NET proxy class for accessing the service) used when calling the SaveDeductibleRules web method.

try
{
    // create new SOAP header for the user’s current session id localhost.MBISessionHeader sh = new localhost.MBISessionHeader();
    // create the proxy object for the service
    localhost.SaveDeductibleRules proxy = new localhost.SaveDeductibleRules();
    // set the parameters for the web method call
    request.TpaId = "T00021";
    request.EmployerId = "MedSC";
    request.AccountTypeCode = “FSA”;
    request.PlanId = “FSA2009”;
    request.PlanYearStartDate = 2009-01-01;
    request.PlanYearEndDate = 2009-12-31;
    request.CoverageTierId = “CVRTIER1”;
    request.DeductibleRuleSet.HighRange = 1000d;
    request.DeductibleRuleSet.PlanPayPercentage = 10;
    // Add the session SOAP header so that the service knows who we are.
    // Note that we stored the session ID in a member variable after
    // logged in to the system for future web method calls.
    sh.MBISessionID = _sessionID;
    proxy.MBISessionHeaderValue = sh;
    // Call the web method.
    proxy.SaveDeductibleRules(request);
    MessageBox.Show("Finished");
}
catch(SoapException se)
{
    // perform needed operations
}
catch(Exception ex)
{
    // perform needed operations
}

Plan Deductible Rules API | Administrative - SOAP

DeleteDeductibleRules

Request Body

GetBenefitPlanDeductibleRules

Request Body

Response Body

SaveDeductibleRules

Request Body

AI Assistant Preview

AI Assistant ^Preview
