Card API | Administrative - SOAP

The Card Service provides card related functionalities such as reading, creating, and updating information related to a card.

Important Note: In order to facilitate backward compatibility with all Web Services in use prior to June 4, 2005, either Employee (Dependent) Social Security Number (previously used as unique employee/dependent identifier) or Employee (Dependent) ID (new unique employee/dependent identifier) may be provided when required to uniquely identify an employee or dependent. If both are provided, the Employee (Dependent) ID is be used as the unique identifier.

Service Web Methods

The following is a list of methods that is provided by the Card Service.

CreateCardForDependent – generates a card number for a dependent.
CreateCardForEmployee – generates a card number for an employee.
GetCards - used to get a list of cards for a cardholder.

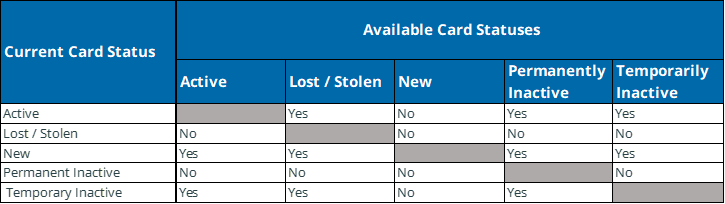

UpdateCardStatus - used to update information for a given card.
GetCardholderPin - used to retrieve a cardholder's PIN.

Service Assumptions/Business Rules

The Card Service makes the following assumptions as well as enforce the following business rules.

Clients shall conform to the WS-I specifications unless otherwise agreed upon by Alegeus Technologies and the administrator.
Clients shall format SOAP messages in a Document/Literal format over HTTPS.
Clients shall have already created a valid user ID and password.
Clients shall have a valid session ID after being authenticated by the system. The session ID needs to be passed in the proper manner as described in the Account Manager Service Guide.
If the administrator uses the same user ID and password for all of their clients, the administrator is responsible for managing the security of the data.
Clients should validate data before submitting a request to this Service. This facilitates better performance and accurate processing on both systems.
Clients shall not attempt to use this service for batch processing of large amounts of data. The service is designed for synchronous calls that send or retrieve small chunks of data. If batch processing is required, then the EDI process should be used.
If any method fails, the service returns a SOAP fault describing the problem.

CreateCardForDependent

This method is used to generate a card number for a dependent. Alegeus Technologies WealthCare Administration System requires a unique card number for each employee and each dependent (for employers offering the card). Cards are issued on a daily basis (including weekends) at 8:00 a.m. CT. The cards are physically distributed approximately two business days after the card order is received. A card number must be created to allow transactions (including deposits) to be put into an employee account (for employers offering the card).

History

The CreateCardForDependent methods are listed below:

Request Messages

CreateCardForDependentRequest_2013_02
CreateCardForDependentRequest_2011_10
CreateCardForDependentRequest_2006_12
CreateCardForDependentRequest_2006_05
CreateCardForDependentRequest

Response Messages

CreateCardForDependentResponse

CreateCardForDependent Request/Response Messages

The CreateCardForDependent method requires the following request and response messages (input and output data).

The table below includes the following request messages:

CreateCardForDependentRequest_2006_12
CreateCardForDependentRequest_2006_05
CreateCardForDependentRequest

Request Body

CardEffective Date Date

Indicates card effective date. If not supplied, it defaults to today’s date. May not be earlier than the current date.

First Available Version:	CreateCardForDependentRequest
Default Values:	`Today’s date`

DependentId String conditionally required

Required if this field is being used as the unique dependent identifier. Either this field or Dependent SSN may be used for this purpose.

First Available Version: CreateCardForDependentRequest
EmployeeId String conditionally required

Required if this field is being used as the unique employee identifier. Either this field or Employee SSN may be used for this purpose. Required if Dependent ID is not unique within an employer.

First Available Version: CreateCardForDependentRequest
DependentSocialSecurityNumber String conditionally required

Dependent's social security number.

First Available Version: CreateCardForDependentRequest
EmployeeSocialSecurityNumber String conditionally required

Employee's social security number.

First Available Version: CreateCardForDependentRequest
EmployerId String required

Unique identifier for the employer. Note: When the employer was created, WealthCare Admin assigned the 3-character prefix; you assigned the remaining characters.

First Available Version: CreateCardForDependentRequest
ExpireDate Date

Card expiration date.

First Available Version: CreateCardForDependentRequest
IssueCard Enumeration required

None = -1
DoNotIssue = 1
Issue = 2
Sent = 3
Conditional = 4
Mailed = 5
Waiting = 6
If Conditional, a new card is to be created and issued only if the employee is not currently in possession of a card in any status.

First Available Version: CreateCardForDependentRequest
IssueDate Date

Ignored unless IssueCard is set to Issue. Can be set to future date. Indicates when a card will be sent to card vendor.

First Available Version: CreateCardForDependentRequest

ShippingAddressCode Enumeration

None = 0
Cardholder = 1
Employer = 2
Tpa (Administrator) = 3
MBI (Alegeus Technologies) = 4
PrimaryCardholder = 5
CardholderShipping = 6
EmployerAlternate = 7
TPAAlternate = 8
If not supplied, defaults to Cardholder if IssueCard is either Issue or Conditional, otherwise not set.
Note: Cannot use PrimaryCardholder for the ShippingAddressCode of an employee. Exception 20064 would be raised.

First Available Version:	CreateCardForDependentRequest
Default Values:	`Cardholder`

TpaId String

A unique identifer for your administrator instance, generated by WCA when the instance was first set up. If a value is not sent, the TPA ID from the user making the request with be used.

First Available Version: CreateCardForDependentRequest
ShippingExpediteCode Enumeration

Shipping Expedite Code:
None = 0
Standard = 1
OverNight = 2
BulkOverNight = 3

First Available Version: CreateCardForDependentRequest_2006_05
AlternateAddressName String

This specifies an alternate address for administrator or employer, depending upon TPAAlternate or EmployerAlternate specified in shipping address code field. If no value is specified, the default value setup in system is used. If the value specified doesn’t exist in the system, an exception is thrown.

First Available Version: CreateCardForDependentRequest_2006_12

PinIssueAddressCode Enumeration conditionally required

The address the PIN Mailer is sent to.
Required if IssuePINMailer = True.
None = 0
Cardholder = 1
Employer = 2
Tpa (Administrator) = 3
MBI (Alegeus Technologies) = 4
PrimaryCardholder = 5
CardholderShipping = 6
EmployerAlternate = 7
TPAAlternate = 8

First Available Version:	CreateCardForDependentRequest_2013_02
Default Values:	`None`

IssuePinMailer Boolean

Specifies whether or not to issue a PIN Mailer associated with the request debit card.
False – Does not issue a PIN Mailer
True – Issues a PIN Mailer

First Available Version:	CreateCardForDependentRequest_2013_02
Default Values:	`FALSE`

Response Message: Empty Message

Example of a CreateCardForDependent SOAP request message

<?xml version="1.0" encoding="utf-8" ?>
<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:xsd="http://www.w3.org/2001/XMLSchema">
    <soap:Header>
        <MBISessionHeader xmlns="http://www.medibank.com/MBIWebServices/SoapHeader/">
            <MBISessionID>c4lzhd55eu1eny55qxw0fp45</MBISessionID>
        </MBISessionHeader>
    </soap:Header>
    <soap:Body>
        <CreateCardForDependent_2006_12 xmlns="http://www.medibank.com/MBIWebServices/Employee/Messages/Card/Request/2006/12/">
            <CreateCardForDependentRequest_2006_12>
                <CardEffectiveDate>2004-09-14</CardEffectiveDate>
                <DependentSocialSecurityNumber>122132876</DependentSocialSecurityNumber>
                <EmployeeSocialSecurityNumber>332323232</EmployeeSocialSecurityNumber>
                <EmployerId>EASE10</EmployerId>
                <IssueCard xmlns="http://www.medibank.com/MBIWebServices/Enums/">Issue</IssueCard>
                <IssueDate>2004-09-14</IssueDate>
                <ShippingAddressCode xmlns="http://www.medibank.com/MBIWebServices/Enums/">EmployerAlternate</ShippingAddressCode>
                <TpaId>T00209</TpaId>
                <ShippingExpediteCode xmlns="http://www.medibank.com/MBIWebServices/Enums/">Standard</ShippingExpediteCode>
                <AlternateAddressName> Test Address</AlternateAddressName>
            </CreateCardForDependentRequest_2006_12>
        </CreateCardForDependent_2006_12>
    </soap:Body>
</soap:Envelope>

Example of CreateCardForDependent SOAP response message

<?xml version="1.0" encoding="utf-8" ?>
<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:xsd="http://www.w3.org/2001/XMLSchema">
    <soap:Header>
        <MBIMessageIdHeader xmlns="http://www.medibank.com/MBIWebServices/SoapHeader/" />
    </soap:Header>
    <soap:Body>
        <CreateCardForDependentResponse xmlns="http://www.medibank.com/MBIWebServices/Employee/Messages/Card/Response/2004/06/">
            <CreateCardForDependentResult />
        </CreateCardForDependentResponse>
    </soap:Body>
</soap:Envelope>

Example Client Code

The following is an example of the client code (using a .NET proxy class for accessing the service) used when adding an employee using the CreateCardForDependent web method.

try
{
    // Create the session SOAP header in order to pass the Card Service
    // the client’s current session id.
    mbiSessionHeader = new CardServiceNameSpace.MBISessionHeader();
    // Create proxy object for card service
    proxy = new CardServiceNameSpace.CardService();
    // Create request message for method call (input parameters)
    request = new CardServiceNameSpace.CreateCardForDependentRequest_2006_12();
    // Set the input parameters
    request.CardEffectiveDate = Convert.ToDateTime(_cardEffectiveDate.Text);
    request.DependentSocialSecurityNumber = _dependentSocialSecurityNumber.Text;
    request.EmployeeSocialSecurityNumber = _employeeSocialSecurityNumber.Text;
    request.EmployerId = _employerId.Text;
    if(_expireDate.Text.Length > 0)
    {
        request.ExpireDate = Convert.ToDateTime(_expireDate.Text);
    }
    request.IssueCard = (CardServiceNameSpace.CardIssueCodes)_issueCard.SelectedItem;
    if(_issueDate.Text.Length > 0)
    {
        request.IssueDate = Convert.ToDateTime(_issueDate.Text);
    }
    request.ShippingAddressCode =
        (CardServiceNameSpace.CardholderIssueAddress)
        _shippingAddressCode.SelectedItem;
    request.TpaId = _tpaId.Text;
    request.AlternateAddressName =_alternateAddress.Text;
    // session ID returned from login method
    mbiSessionHeader.MBISessionID = _sessionId.Text;
    proxy.MBISessionHeaderValue = mbiSessionHeader;
    // Call the method
    response = proxy.CreateCardForDependent(request);
    MessageBox.Show("Finished.");
}
catch(SoapException se)
{
    // perform needed operations
}
catch(Exception ex)
{
    // perform needed operations
}

CreateCardForEmployee

This method is used to generate a card number for an employee. WCA requires a unique card number for each employee and each dependent (for employers offering the card). Cards are issued on a daily basis (including weekends) at 8:00 a.m. CT. The cards are physically distributed approximately two business days after the card order is received. A card number must be created to allow transactions (including deposits) to be put into an employee account (for employers offering the card).

History

The CreateCardForEmployee methods are listed below:

Request Messages

CreateCardForEmployeeRequest_2013_02
CreateCardForEmployeeRequest_2006_12
CreateCardForEmployeeRequest_2006_05
CreateCardForEmployeeRequest

Response Messages

CreateCardForEmployeeResponse

CreateCardForEmployee Request/Response Messages

The CreateCardForEmployee method requires the following request and response messages (input and output data).

The table below includes the following request messages:

CreateCardForEmployeeRequest_2006_12
CreateCardForEmployeeRequest_2006_05
CreateCardForEmployeeRequest

Request Body

CardEffectiveDate Date

Indicates card effective date. If not supplied it, defaults to today’s date. May not be earlier than the current date.

First Available Version:	CreateCardForEmployeeRequest
Default Values:	`Today’s date`

EmployeeSocialSecurityNumber String conditionally required

Employee’s social security number.

First Available Version: CreateCardForEmployeeRequest
EmployeeId String conditionally required

Required if this field is being used as the unique employee identifier. Either this field or SSN may be used for this purpose.

First Available Version: CreateCardForEmployeeRequest
EmployerId String required

Unique identifier for the employer. Note: When the employer was created, WealthCare Admin assigned the 3-character prefix; you assigned the remaining characters.

First Available Version: CreateCardForEmployeeRequest
ExpireDate Date

Card expiration date.

First Available Version: CreateCardForEmployeeRequest
IssueCard Enumeration required

None = -1
DoNotIssue = 1
Issue = 2
Sent = 3
Conditional = 4
Mailed = 5
Waiting = 6
If Conditional, a new card is to be created and issued only if the employee is not currently in possession of a card in any status.

First Available Version: CreateCardForEmployeeRequest
IssueDate Date

Ignored unless IssueCard is set to Issue. Can be set to future date. Indicates when a card will be sent to card vendor.

First Available Version: CreateCardForEmployeeRequest

ShippingAddressCode Enumeration

First Available Version:	CreateCardForEmployeeRequest
Default Values:	`Cardholder`

TpaId String

A unique identifer for your administrator instance, generated by WCA when the instance was first set up. If a value is not sent, the TPA ID from the user making the request with be used.

First Available Version: CreateCardForEmployeeRequest
ShippingExpediteCode Enumeration

Shipping Expedite Code:
None = 0
Standard = 1
OverNight = 2
BulkOverNight = 3

First Available Version: CreateCardForEmployeeRequest_2006_05
AlternateAddressName String

This specifies an alternate address for administrator or employer, depending upon TPAAlternate or EmployerAlternate specified in the shipping address code field. If no value is specified, the default value setup in system is used. If the value specified doesn’t exist in the system an exception is thrown(error number= 20063).

First Available Version: CreateCardForEmployeeRequest_2006_12

PinIssueAddressCode Enumeration conditionally required

The address the PIN Mailer is sent to.
Required is IssuePINMailer = True.
None = 0
Cardholder = 1
Employer = 2
Tpa (Administrator) = 3
MBI (Alegeus Technologies) = 4
PrimaryCardholder = 5
CardholderShipping = 6
EmployerAlternate = 7
TPAAlternate = 8

First Available Version:	CreateCardForEmployeeRequest_2013_02
Default Values:	`None`

IssuePinMailer Boolean

Specifies whether or not to issue a PIN Mailer associated with the request debit card.
False – Does not issue a PIN Mailer
True – Issues a PIN Mailer

First Available Version:	CreateCardForEmployeeRequest_2013_02
Default Values:	`FALSE`

Response Message: Empty Message

Example of a CreateCardForEmployee SOAP request message

<?xml version="1.0" encoding="utf-8" ?>
<soap:Envelope xmlns:soap=http://schemas.xmlsoap.org/soap/envelope/
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:xsd="http://www.w3.org/2001/XMLSchema">
    <soap:Header>
        <MBISessionHeader xmlns="http://www.medibank.com/MBIWebServices/SoapHeader/">
            <MBISessionID>c4lzhd55eu1eny55qxw0fp45</MBISessionID>
        </MBISessionHeader>
    </soap:Header>
    <soap:Body>
        <CreateCardForEmployee_2006_12 xmlns="http://www.medibank.com/MBIWebServices/Employee/Messages/Card/Request/2006/12/">
            <CreateCardForEmployeeRequest_2006_12>
                <CardEffectiveDate>2004-09-14</CardEffectiveDate>
                <EmployeeSocialSecurityNumber>332323232</EmployeeSocialSecurityNumber>
                <EmployerId>EASE10</EmployerId>
                <IssueCard xmlns="http://www.medibank.com/MBIWebServices/Enums/">Issue</IssueCard>
                <IssueDate>2004-09-14</IssueDate>
                <ShippingAddressCode xmlns="http://www.medibank.com/MBIWebServices/Enums/">EmployerAlternate</ShippingAddressCode>
                <TpaId>T00209</TpaId>
                <ShippingExpediteCode xmlns="http://www.medibank.com/MBIWebServices/Enums/">Standard</ShippingExpediteCode>
                <AlternateAddressName>Test Address</AlternateAddressName>
            </CreateCardForEmployeeRequest_2006_12>
        </CreateCardForEmployee_2006_12>
    </soap:Body>
</soap:Envelope>

Example of a CreateCardForEmployee SOAP response message

<?xml version="1.0" encoding="utf-8" ?>
<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:xsd="http://www.w3.org/2001/XMLSchema">
    <soap:Header>
        <MBIMessageIdHeader xmlns="http://www.medibank.com/MBIWebServices/SoapHeader/" />
    </soap:Header>
    <soap:Body>
        <CreateCardForEmployeeResponse xmlns="http://www.medibank.com/MBIWebServices/Employee/Messages/Card/Response/2004/06/">
            <CreateCardForEmployeeResult />
        </CreateCardForEmployeeResponse>
    </soap:Body>
</soap:Envelope>

Example Client Code

The following is an example of the client code (using a .NET proxy class to connect with the service) used when calling the CreateCardForEmployee method.

try
{
    // Create the session SOAP header in order to pass the Card Service
    // the client’s current session id.
    mbiSessionHeader = new CardServiceNameSpace.MBISessionHeader();
    // Create proxy object for the card service
    proxy = new CardServiceNameSpace.CardService();
    // Create request message for method call (input parameters)
    request = new CardServiceNameSpace.CreateCardForEmployeeRequest_2006_12();
    // Set the input parameters
    request.CardEffectiveDate = Convert.ToDateTime(_cardEffectiveDate.Text);
    request.EmployeeSocialSecurityNumber = _employeeSocialSecurityNumber.Text;
    request.EmployerId = _employerId.Text;
    if(_expireDate.Text.Length > 0)
    {
        request.ExpireDate = Convert.ToDateTime(_expireDate.Text);
    }
    request.IssueCard = (CardServiceNameSpace.CardIssueCodes)_issueCard.SelectedItem;
    if(_issueDate.Text.Length > 0)
    {
        request.IssueDate = Convert.ToDateTime(_issueDate.Text);
    }
    request.ShippingAddressCode =
        (CardServiceNameSpace.CardholderIssueAddress)
        _shippingAddressCode.SelectedItem;
    request.TpaId = _tpaId.Text;
    request.AlternateAddressName =_alternateAddress.Text;
    // session ID returned from login method
    mbiSessionHeader.MBISessionID = _sessionId.Text;
    proxy.MBISessionHeaderValue = mbiSessionHeader;
    // Call the method
    response = proxy.CreateCardForEmployee(request);
    MessageBox.Show("Finished.");
}
catch(SoapException se)
{
    // perform needed operations
}
catch(Exception ex)
{
    // perform needed operations
}

GetCards

This method is used to get a list of cards for a cardholder.

History

The GetCards methods are listed below:

Request Messages

GetCardsRequest_2011_12
GetCardsRequest

Response Messages

GetCardsResponse_2013_02
GetCardsResponse_2011_12
GetCardsResponse_2011_10
GetCardsResponse_2007_12
GetCardsResponse_2006_12
GetCardsResponse_2006_05
GetCardsResponse

GetCards Request/Response Messages

The GetCards method requires the following request and response messages (input and output data).

The table below includes the following request messages:

GetCardsRequest

Request Body

CardholderId String conditionally required

Replaced by Employee and Dependent SSN in version 2011_10.
Required if this field is being used as the unique cardholder identifier and card number is not provided. Either this field or SSN may be used for this purpose.

First Available Version: GetCardsRequest
CardholderSocialSecurityNumber String conditionally required

Replaced by Employee and Dependent ID in version 2011_10.
Required if this field is being used as the unique cardholder identifier and card number is not provided. Either this field or Cardholder ID may be used for this purpose.

First Available Version: GetCardsRequest
CardNumber String conditionally required

Either a Card Number or a Card Proxy can be passed in this field. If Card Proxy is used, then the ‘IsProxyCard’ field must be set to ‘True’.
When requesting debit card information, provide one of the following: Card Number,
Employee/Dependent’s Social Security Number, or Employee/Dependent ID.
If multiple fields are provided in addition to the card number, the card number is used.

First Available Version: GetCardsRequest
EmployerId String required

Unique identifier for the employer. Note: When the employer was created, WealthCare Admin assigned the 3-character prefix; you assigned the remaining characters.

First Available Version: GetCardsRequest
TpaId String

A unique identifer for your administrator instance, generated by WCA when the instance was first set up. If a value is not sent, the TPA ID from the user making the request with be used.

First Available Version: GetCardsRequest

VerboseMode Boolean

Optional, if set to true, the method may return more details as to why a query did not return any records. For example, if an invalid employee social security number was sent.

First Available Version:	GetCardsRequest
Default Values:	`FALSE`

DependentSocialSecurityNumber String conditionally required

Dependent’s social security number.

First Available Version: GetCardsRequest_2011_10
DependentId String conditionally required

Required if this field is being used as the unique dependent identifier. Either this field or SSN may be used for this purpose.

First Available Version: GetCardsRequest_2011_10
EmployeeSocialSecurityNumber String conditionally required

Employee’s social security number. Required if dependent IDs are not unique within an Employer.

First Available Version: GetCardsRequest_2011_10
EmployeeID String conditionally required

Employee’s WCA ID. Required if dependent IDs are not unique within an Employer.

First Available Version: GetCardsRequest_2011_10

IsProxyCard Boolean

False (0) or True (1) values accepted.
Note: For security, the Card Proxy number is always returned in the response.

First Available Version:	GetCardsRequest_2011_12
Default Values:	`FALSE`

The table below includes the following request messages:

GetCardsResponse_2013_02
GetCardsResponse_2007_12
GetCardsResponse_2006_12
GetCardsResponse_2006_05
GetCardsResponse

Response Body

CardEffectiveDate String

Indicates card effective date. If not supplied it default to today’s date. May not be earlier than the current date.

First Available Version: GetCardsResponse
CardNumber String

Card Proxy Number.
Note: The Card Proxy number is returned in this field when either 0 or 1 is passed in the “IsProxyCard” field in the request. For security, the Card Proxy number is always returned in the response.

First Available Version: GetCardsResponse
CardCurrentStatus Enumeration

Status of the card.
New - 1
Active - 2
TempInactive - 3
PermInactive - 4
LostStolen - 5

First Available Version: GetCardsResponse
CardholderFirstName String

Cardholder’s first name.

First Available Version: GetCardsResponse
CardholderLastName String

Cardholder’s last name.

First Available Version: GetCardsResponse
CardholderMiddleInitial String

Cardholder’s middle initial.

First Available Version: GetCardsResponse
CardholderId String

Cardholder’s ID.

First Available Version: GetCardsResponse
DependentCard Boolean

Indicates whether or not this card belongs to a dependent. True indicates that the card belongs to a dependent, false indicates the card belongs to an employee.

First Available Version: GetCardsResponse
EmployerId String

Unique identifier for the employer. Note: When the employer was created, WealthCare Admin assigned the 3-character prefix; you assigned the remaining characters.

First Available Version: GetCardsResponse
ExpireDate String

The card expiration date.

First Available Version: GetCardsResponse
IssueCardCode Enumeration

None = -1
DoNotIssue = 1
Issue = 2
Sent = 3
Conditional = 4
Mailed = 5
Waiting = 6

First Available Version: GetCardsResponse
IssueDate String

Date that the card should be issued.

First Available Version: GetCardsResponse
ShippingAddressCode Enumeration

None = 0
Cardholder = 1
Employer = 2
Tpa (Administrator) = 3
MBI (Alegeus Technologies) = 4
PrimaryCardholder = 5
CardholderShipping = 6
EmployerAlternate = 7
TPAAlternate = 8

First Available Version: GetCardsResponse
TpaId String

A unique identifer for your administrator instance, generated by WCA when the instance was first set up. If a value is not sent, the TPA ID from the user making the request with be used.

First Available Version: GetCardsResponse
LastUpdateDate DateTime

Date of the last update.

First Available Version: GetCardsResponse
StatusChangeReason Enumeration

Valid Values for status “New”
InitialCardIssuance= 17
Valid Values for Status “Active”
IVR= 1
None= 3
CardholderCalledtoActivate = 2
Valid Values for Status “TempInactive”
EmployeeTerminated= 4
EligibilityChange= 5
PendingCardholderReimbursement = 6
EmployerTerminated= 7
CardholderRequestedChange= 8
EmployerRequestedChange= 9
None = 3
Valid Values for Status “Lost&Stolen”
CardholderReportedCardStolen = 10
CardholderReportedCardLost= 11
IVRForLostStolen=5
CardNotReceived = 13
EmployerRequestedChangeForLostOrStolen = 14
None = 3
Valid Values for “PermInactive”
None = 3
EmployeeTerminatedForPermInactive = 15
EligibilityChangeForPermInactive = 16

First Available Version: GetCardsResponse
ShippingExpediteCode Enumeration

Shipping Expedite Codes:
None = 0
Standard = 1
OverNight = 2
BulkOverNight = 3

First Available Version: GetCardsResponse_2006_05
AlternateAddressName String

This specifies an alternate address for administrator or employer, depending upon TPAAlternate or EmployerAlternate specified in shipping address code field

First Available Version: GetCardsResponse_2006_12
CardType String

Returns Payment Card or Combo Card data.

First Available Version: GetCardsResponse_2007_12
PickDate String

The processed date within the .psi file.

First Available Version: GetCardsResponse_2007_12
IssueBy String

The user ID that created the card.

First Available Version: GetCardsResponse_2007_12
ShippingAddress String

The street address for the ShippingAddressCode field that is displayed on the Card screen.

First Available Version: GetCardsResponse_2007_12
MailedDate String

Date the card was mailed.

First Available Version: GetCardsResponse_2007_12
ActivationDate String

The date of which the card status changed from New to Active.

First Available Version: GetCardsResponse_2007_12
ThermalLogoId String

If it was used on the card, the Thermal Logo (Front) Description is returned.

First Available Version: GetCardsResponse_2007_12
PINMailerRequestDate String

The date the PIN Mailer was requested.

First Available Version: GetCardsResponse_2013_02
PINMailerDate String

The date the PIN Mailer was mailed to the recipient.

First Available Version: GetCardsResponse_2013_02
PINMailerAddress String

The address the PIN Mailer was shipped to.

First Available Version: GetCardsResponse_2013_02
PINMailerIssued Boolean

True – A PIN Mailer was issued. False – A PIN Mailer was not issued.

First Available Version: GetCardsResponse_2013_02
CardProxyNumber String

The debit card’s Card Proxy number. This value is required for retrieving a debit card’s PIN value.

First Available Version: GetCardsResponse_2013_02
Notes String

Notes for card

First Available Version: GetCardsResponse_2015_06

Example of a GetCards SOAP request message

<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/">
    <s:Header>
        <Action s:mustUnderstand="1" xmlns="http://schemas.microsoft.com/ws/2005/05/addressing/none">http://bensoft.metavante.com/WebServices/Contracts/Card/2011/10/V1/ICardService/GetCards</Action>
        <mbiSessionHeader xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
            <MBISessionID xmlns="http://schemas.datacontract.org/2004/07/MBI.WebServices.Wcf.Headers">b3xjotpxc2d1jtbkgh1xfbwa</MBISessionID>
        </mbiSessionHeader>
    </s:Header>
    <s:Body>
        <GetCards xmlns="http://bensoft.metavante.com/WebServices/Contracts/Card/2011/10/V1">
            <request xmlns:d4p1="http://bensoft.metavante.com/WebServices/Messages/Card/Request/2011/10/" xmlns:i="http://www.w3.org/2001/XMLSchema-instance" xmlns:d4p3="http://bensoft.metavante.com/WebServices/Messages/Card/Request/2013/02/" i:type="d4p3:GetCards_2013_02">
                <d4p1:CardNumber>5543240032725793</d4p1:CardNumber>
                <d4p1:DependentId i:nil="true" />
                <d4p1:DependentSocialSecurityNumber i:nil="true" />
                <d4p1:EmployeeId i:nil="true" />
                <d4p1:EmployeeSocialSecurityNumber i:nil="true" />
                <d4p1:EmployerId>LOPDEMO123</d4p1:EmployerId>
                <d4p1:TpaId i:nil="true" />
                <d4p1:VerboseMode>false</d4p1:VerboseMode>
                <IsProxyCard xmlns="http://bensoft.metavante.com/WebServices/Messages/Card/Request/2011/12/">false</IsProxyCard>
            </request>
        </GetCards>
    </s:Body>
</s:Envelope>

Example of a GetCards SOAP response message

<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/">
    <s:Header>
        <MBIMessageIdHeader xmlns="http://bensoft.metavante.com/WebServices/SoapHeader/">
            <MessageId>urn:uuid:f0293d39-be97-40a6-9fb2-9694fc08245e</MessageId>
        </MBIMessageIdHeader>
    </s:Header>
    <s:Body>
        <GetCardsResponse xmlns="http://bensoft.metavante.com/WebServices/Contracts/Card/2011/10/V1">
            <GetCardsResult xmlns:a="http://bensoft.metavante.com/WebServices/Messages/Card/Response/2011/10/" xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
                <a:GetCardsResponse i:type="b:GetCardsResponse_2013_02" xmlns:b="http://bensoft.metavante.com/WebServices/Messages/Card/Response/2013/02/">
                    <a:ActivationDate>-1</a:ActivationDate>
                    <a:AlternateAddressName i:nil="true" />
                    <a:CardCurrentStatus>New</a:CardCurrentStatus>
                    <a:CardEffectiveDate>20130130</a:CardEffectiveDate>
                    <a:CardNumber>5543240032725793</a:CardNumber>
                    <a:CardType>Payment Card</a:CardType>
                    <a:CardholderFirstName>Jan</a:CardholderFirstName>
                    <a:CardholderId>jones321D1</a:CardholderId>
                    <a:CardholderLastName>Jones</a:CardholderLastName>
                    <a:CardholderMiddleInitial />
                    <a:DependentCard>true</a:DependentCard>
                    <a:EmployerId>LOPDEMO123</a:EmployerId>
                    <a:ExpireDate>20160131</a:ExpireDate>
                    <a:IssueBy>Admin, , Tony TPA</a:IssueBy>
                    <a:IssueCardCode>Issue</a:IssueCardCode>
                    <a:IssueDate>20130130</a:IssueDate>
                    <a:LastUpdateDate>2013-01-30T10:23:26.903</a:LastUpdateDate>
                    <a:MailedDate />
                    <a:PickDate>0</a:PickDate>
                    <a:ShippingAddress>123 Main St, , Waltham, MA, 01234, </a:ShippingAddress>
                    <a:ShippingAddressCode>Cardholder</a:ShippingAddressCode>
                    <a:ShippingExpediteCode>Standard</a:ShippingExpediteCode>
                    <a:StatusChangeReason>InitialCardIssuance</a:StatusChangeReason>
                    <a:ThermalLogoId />
                    <a:TpaId>T01213</a:TpaId>
                    <b:PinMailedDate />
                    <b:PinMailerAddress>123 Main St, , Waltham, MA, 01234, </b:PinMailerAddress>
                    <b:PinMailerIssued>false</b:PinMailerIssued>
                    <b:PinRequestedDate>20130130</b:PinRequestedDate>
                </a:GetCardsResponse>
            </GetCardsResult>
        </GetCardsResponse>
    </s:Body>
</s:Envelope>

Example Client Code

The following is an example of the client code (using a .NET proxy class to connect with the service) used when calling the GetCards method.

try
{
    _dataset.Tables["Cards"].Clear();
    // Create the session SOAP header in order to pass the Card Service
    // the client’s current session id.
    mbiSessionHeader = new CardServiceNameSpace.MBISessionHeader();
    // Create proxy object for the Card Service
    proxy = new CardServiceNameSpace.CardService();
    // Create request message for method call (input parameters)
    request = new CardServiceNameSpace.GetCardsRequest();
    // Set the input parameters
    request.CardholderSocialSecurityNumber = _socialSecurityNumber.Text;
    request.CardNumber = _cardNumber.Text;
    request.EmployerId = _employerId.Text;
    request.TpaId = _tpaId.Text;
    request.VerboseMode = Convert.ToBoolean(_verboseMode.Text);
    // session ID returned from logon method
    mbiSessionHeader.MBISessionID = _sessionId.Text;
    proxy.MBISessionHeaderValue = mbiSessionHeader;
    responses = proxy.GetCards(request);
    if(responses != null)
    {
        for(int i=0; i < responses.Length; i++)
        {
            _dataset.Tables["Cards"].Rows.Add(new string[]
            {
                responses[i].CardEffectiveDate,
                    responses[i].CardNumber,
                    responses[i].CardCurrentStatus.ToString(),
                    responses[i].CardholderFirstName,
                    responses[i].CardholderLastName,
                    responses[i].CardholderMiddleInitial,
                    responses[i].EmployerId,
                    responses[i].ExpireDate,
                    responses[i].IssueCardCode.ToString(),
                    responses[i].IssueDate,
                    responses[i].LastUpdateDate.ToString(),
                    responses[i].ShippingAddressCode.ToString(),
                    responses[i].TpaId,
                    responses[i].ShippingExpediteCode.ToString(),
                    responses[i]. StatusChangeReason.ToString(),
                    responses[i]. AlternateAddressName,
            });
        }
    }
    _accounts.CaptionText = _dataset.Tables["Cards"].Rows.Count + " records found.";
}
catch(SoapException se)
{
    // perform needed operations
}
catch(Exception ex)
{
    // perform needed operations
}

UpdateCardStatus

This method is used to update information for a given card.

History

The UpdateCardStatus methods are listed below:

Request Messages

UpdateCardStatusRequest_2011_12
UpdateCardStatusRequest

Response Messages

UpdateCardStatusRequest

UpdateCardStatus Request/Response Messages

The UpdateCardStatus method requires the following request and response messages (input and output data).

The table below includes the following request messages:

UpdateCardStatusRequest

Request Body

CardNumber String required

Employee or Dependent card number.

First Available Version: UpdateCardStatusRequest

CardStatus Enumeration required

Status of the card.
New - 1
Active - 2
TempInactive - 3
PermInactive - 4
LostStolen - 5

First Available Version:	UpdateCardStatusRequest
Default Values:	`New`

EmployerId String required

Unique identifier for the employer. Note: When the employer was created, WealthCare Admin assigned the 3-character prefix; you assigned the remaining characters.

First Available Version: UpdateCardStatusRequest
TpaId String

A unique identifer for your administrator instance, generated by WCA when the instance was first set up. If a value is not sent, the TPA ID from the user making the request with be used.

First Available Version: UpdateCardStatusRequest

StatusChangeReason Enumeration

Valid Values for status “New”
InitialCardIssuance= 17
Valid Values for Status “Active”
IVR= 1
None= 3
CardholderCalledtoActivate = 2
Valid Values for Status “TempInactive”
EmployeeTerminated= 4
EligibilityChange= 5
PendingCardholderReimbursement = 6
EmployerTerminated= 7
CardholderRequestedChange= 8 EmployerRequestedChange= 9
None = 3
Valid Values for Status “Lost&Stolen”
CardholderReportedCardStolen = 10
CardholderReportedCardLost= 11
IVRForLostStolen=5
CardNotReceived = 13
EmployerRequestedChangeForLostOrStolen = 14
None = 3
Valid Values for “PermInactive”
None = 3
EmployeeTerminatedForPermInactive = 15
EligibilityChangeForPermInactive = 16

First Available Version:	UpdateCardStatusRequest
Default Values:	`None`

IsProxyCard Boolean

True – Card Proxy Number is passed in CardNumber field
False – Card Number is passed in
CardNumber field
The Card Number field in the Response will return card number or proxy card number based on the 'IsProxyCard' value within the Request.

First Available Version:	UpdateCardStatusRequest_2011_12
Default Values:	`FALSE`

PinIssueAddressCode Enumeration conditionally required

First Available Version:	UpdateCardStatusRequest_2013_02
Default Values:	`None`

IssuePinMailer Boolean

Specifies whether or not to issue a PIN Mailer associated with the request debit card. False – Does not issue a PIN Mailer True – Issues a PIN Mailer

First Available Version:	UpdateCardStatusRequest_2013_02
Default Values:	`FALSE`

Notes String

Notes for card status update.

First Available Version: UpdateCardStatusRequest_2015_06

Response Message: Empty Message

Example of a UpdateCardStatus SOAP request message

<?xml version="1.0" encoding="utf-8" ?>
<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:xsd="http://www.w3.org/2001/XMLSchema">
    <soap:Header>
        <MBISessionHeader xmlns="http://www.medibank.com/MBIWebServices/SoapHeader/">
            <MBISessionID>c4lzhd55eu1eny55qxw0fp45</MBISessionID>
        </MBISessionHeader>
    </soap:Header>
    <soap:Body>
        <UpdateCardStatus xmlns="http://www.medibank.com/MBIWebServices/Employee/Messages/Card/Request/2004/06/">
            <updateCardStatusRequest>
                <CardNumber>5543240022120955</CardNumber>
                <CardStatus xmlns="http://www.medibank.com/MBIWebServices/Enums/">Active</CardStatus>
                <EmployerId>EASE10</EmployerId>
                <TpaId>T00209</TpaId>
            </updateCardStatusRequest>
        </UpdateCardStatus>
    </soap:Body>
</soap:Envelope>

Example of a UpdateCardStatus SOAP response message

<?xml version="1.0" encoding="utf-8" ?>
<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:xsd="http://www.w3.org/2001/XMLSchema">
    <soap:Header>
        <MBIMessageIdHeader xmlns="http://www.medibank.com/MBIWebServices/SoapHeader/" />
    </soap:Header>
    <soap:Body>
        <UpdateCardStatusResponse xmlns="http://www.medibank.com/MBIWebServices/Employee/Messages/Card/Response/2004/06/">
            <UpdateCardStatusResult />
        </UpdateCardStatusResponse>
    </soap:Body>
</soap:Envelope>

Example Client Code

The following is an example of the client code (using a .NET proxy class to connect to the service) used when calling the UpdateCardStatus method.

try
{
    // Create the session SOAP header in order to pass the Card Service
    // the client’s current session id.
    mbiSessionHeader = new CardServiceNameSpace.MBISessionHeader();
    // Create proxy object for the Card Service
    proxy = new CardServiceNameSpace.CardService();
    // Create request message for method call (input parameters)
    request = new CardServiceNameSpace.UpdateCardStatusRequest();
    // Set the input parameters
    request.CardNumber = _cardNumber.Text;
    request.CardStatus = (CardServiceNameSpace.CardStatusUpdate) _cardStatus.SelectedItem;
    request.CardStatusSpecified = true;
    request.EmployerId = _employerId.Text;
    request.TpaId = _tpaId.Text;
    // session ID returned from login method
    mbiSessionHeader.MBISessionID = _sessionId.Text;
    proxy.MBISessionHeaderValue = mbiSessionHeader;
    // Call the method
    response = proxy.UpdateCardStatus(request);
    MessageBox.Show("Finished.");
}
catch(SoapException se)
{
    // perform needed operations
}
catch(Exception ex)
{
    // perform needed operations
}

Rules for Changing Card Status

If there are not any cards currently active for the employee or dependent.

GetCardholderPIN

This method is used to retrieve a participant’s PIN number by customers with external web portal. Only Cards in a New, Active and TI status will return a PIN number. Requests will fail if the debit card’s status is Lost\Stolen or PI. Request will also fail if with invalid parameters are passed. The profile setting “Get Cardholder Pin” must be enabled for the web service user, in order for that user to be able to request a PIN number.

Clients wish to retrieve PINs via this web services request, must be able to provide the debit card’s Card Proxy. Each debit card is assigned a Card Proxy Number automatically. Card Proxy Numbers can be retrieved using the GetCards web services request or an EM EDI Card Export record.

History

The GetCardholderPIN methods are listed below:

Request Messages

GetCardholderPINRequest

Response Messages

GetCardholderPINResponse

GetCardholderPin Request/Response Messages

The GetCardholderPIN method requires the following request and response messages (input and output data).

The table below includes the following request messages:

GetCardHolderPINRequest

Request Body

TpaId String required

A unique identifer for your administrator instance, generated by WCA when the instance was first set up. If a value is not sent, the TPA ID from the user making the request with be used.

First Available Version: GetCardholderPINRequest
EmployerId String required

Unique identifier for the employer. Note: When the employer was created, WealthCare Admin assigned the 3-character prefix; you assigned the remaining characters.

First Available Version: GetCardholderPINRequest
CardProxyNumber String required

The card proxy number for a specific debit card. Can be retrieved by calling the GetCards request.

First Available Version: GetCardholderPINRequest

VerboseMode Boolean

Optional, if set to true, the method may return more details as to why a query did not return any records.

First Available Version:	GetCardholderPINRequest
Default Values:	`FALSE`

The table below includes the following request messages:

GetCardholderPINResponse

Response Body

CardProxyNumber String

The card proxy number for a specific debit card.

First Available Version: GetCardholderPINResponse
PIN String

The card’s PIN number.

First Available Version: GetCardholderPINResponse

Example of a GetCardholderPIN SOAP request message

<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/">
    <s:Header>
        <Action s:mustUnderstand="1" xmlns="http://schemas.microsoft.com/ws/2005/05/addressing/none">http://bensoft.metavante.com/WebServices/Contracts/Card/2011/10/V1/ICardService/GetCardholderPin</Action>
        <mbiSessionHeader xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
            <MBISessionID xmlns="http://schemas.datacontract.org/2004/07/MBI.WebServices.Wcf.Headers">ph21tpk87864ocbd2wpxptx</MBISessionID>
        </mbiSessionHeader>
    </s:Header>
    <s:Body>
        <GetCardholderPin xmlns="http://bensoft.metavante.com/WebServices/Contracts/Card/2011/10/V1">
            <request xmlns:d4p1="http://bensoft.metavante.com/WebServices/Messages/Card/Request/2013/02/" xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
                <d4p1:CardProxyNumber>1100005802468783</d4p1:CardProxyNumber>
                <d4p1:EmployerId>PINDEMO123</d4p1:EmployerId>
                <d4p1:TpaId>T01234</d4p1:TpaId>
                <d4p1:VerboseMode>false</d4p1:VerboseMode>
            </request>
        </GetCardholderPin>

Example of a GetCardholderPIN SOAP response message

<s:Envelope xmlns:s="http://schemas.xmlsoap.org/soap/envelope/">
    <s:Header>
        <MBIMessageIdHeader xmlns="http://bensoft.metavante.com/WebServices/SoapHeader/">
            <MessageId>urn:uuid:4671203d-cc6f-45b0-8c23-6b3d4e51bc91</MessageId>
        </MBIMessageIdHeader>
        <mbiWarningsHeader xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
            <MBIWarnings i:nil="true" xmlns="http://schemas.datacontract.org/2004/07/MBI.WebServices.Wcf.Headers" />
        </mbiWarningsHeader>
    </s:Header>
    <s:Body>
        <GetCardholderPinResponse xmlns="http://bensoft.metavante.com/WebServices/Contracts/Card/2011/10/V1">
            <GetCardholderPinResult xmlns:a="http://bensoft.metavante.com/WebServices/Messages/Card/Response/2013/02/" xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
                <a:CardProxyNumber>1100005802468783</a:CardProxyNumber>
                <a:Pin>7032</a:Pin>
            </GetCardholderPinResult>
        </GetCardholderPinResponse>
    </s:Body>
</s:Envelope>

Card API | Administrative - SOAP

CreateCardForDependent

Request Body

CreateCardForEmployee

Request Body

GetCards

Request Body

Response Body

UpdateCardStatus

Request Body

GetCardholderPIN

Request Body

Response Body

AI Assistant Preview

AI Assistant ^Preview
